The Can-Am Defender HD11 is the newest premium work platform in the Defender family. Its 999cc Rotax inline-three produces 95 horsepower and 70 lb-ft of torque, while a redesigned transmission, pDrive primary clutch, updated differential choices and a quieter, more refined interior separate it from the familiar HD10. For Colorado owners, that combination is especially useful when elevation, steep grades, cab weight, passengers and heavy work all arrive at once.
If you are searching for a Can-Am Defender HD11 for sale in Colorado Springs, browse Sun Powersports’ current Can-Am inventory to compare current three-seat, MAX and cab-equipped configurations.
What Is the Can-Am Defender HD11?
HD11 identifies Can-Am’s next-generation 999cc naturally aspirated inline-three work engine. It is rated at 95 horsepower and 70 lb-ft of torque and is paired with a pDrive primary clutch and a redesigned CVT transmission. The platform was developed to improve drivability, shift quality, noise control, maintenance access and operator comfort rather than simply adding horsepower to an HD10.
That distinction matters when comparing Defenders. The HD10 remains a proven 976cc V-twin platform with an exceptionally broad range of specialized versions. The HD11 is the premium next step for owners who want stronger performance under load, a more polished cab experience and Can-Am’s latest utility engineering. Model availability and equipment can change by year, so this guide focuses on the HD11 family and the meaningful differences among its current packages.
999cc Inline-Three: Power With a Work Focus
The HD11’s 999cc liquid-cooled Rotax inline-three makes 95 horsepower and 70 lb-ft of torque. Compared with the HD10’s 82-horsepower V-twin, the gain is most useful when a machine is carrying a crew, climbing at elevation, towing, running an enclosed cab or moving between slow work and faster property roads. The goal is usable reserve, not sport-UTV drama.
Can-Am pairs the engine with its pDrive primary clutch and a redesigned Quick Response System CVT. pDrive uses a roller-based design intended to provide smooth engagement and responsive power delivery. The transmission is calibrated for utility operation, with easier shifting and better control at low speed. Operators should still choose the correct range for towing, plowing, steep climbs and slow work rather than asking the belt system to pull a heavy load in an unsuitable ratio.
Drive modes help tailor throttle response to the job. A measured response is valuable around trailers, livestock, gates and equipment, while the full-output setting is useful for grades and open travel. No electronic mode replaces traction, load management or thoughtful driving, but the HD11 gives the operator a broader and more refined working envelope.
Colorado Elevation, Grades and Weather
Electronic fuel injection compensates for changes in air density, but every naturally aspirated engine loses some output as elevation rises. The HD11 begins with enough power reserve that it remains a compelling choice for Colorado Springs, Front Range properties and higher mountain work. Its advantage becomes clearest when elevation is combined with passengers, a cab, cargo or a trailer.
Horsepower is only one part of mountain capability. Tire choice, four-wheel drive, differential settings, weight distribution and the correct transmission range determine whether the machine can use that power effectively. On loose climbs or snow, a controlled throttle and appropriate traction setting are more valuable than momentum. On descents, reduce speed early and account for cargo or trailer weight before the surface becomes steep or rough.
Colorado weather also rewards a complete build. A roof and windshield can cover basic shoulder-season use, while a cab model makes early mornings, winter chores and long workdays significantly more comfortable. Buyers planning snow removal should consider visibility, defrosting, heater performance, tire selection, winch and plow compatibility as one system.
Four-Wheel Drive and Front-Differential Choices
The HD11 platform uses selectable two-wheel and four-wheel drive, with front-differential equipment determined by package. Quick-4Lok provides a fast path to fully locked four-wheel traction when conditions demand it. Smart-Lok, where equipped, adds more selectable control for changing terrain. The useful choice depends on whether the machine primarily crosses maintained property, snow, mud, rock or steep loose ground.
Use the least aggressive setting that maintains control. Two-wheel drive reduces driveline bind on firm surfaces, while four-wheel drive supports loose or uneven terrain. A fully locked setting can help when traction is genuinely limited, but it also changes steering effort and behavior. Read the operator’s guide and learn the controls before a difficult climb or recovery makes experimentation expensive.

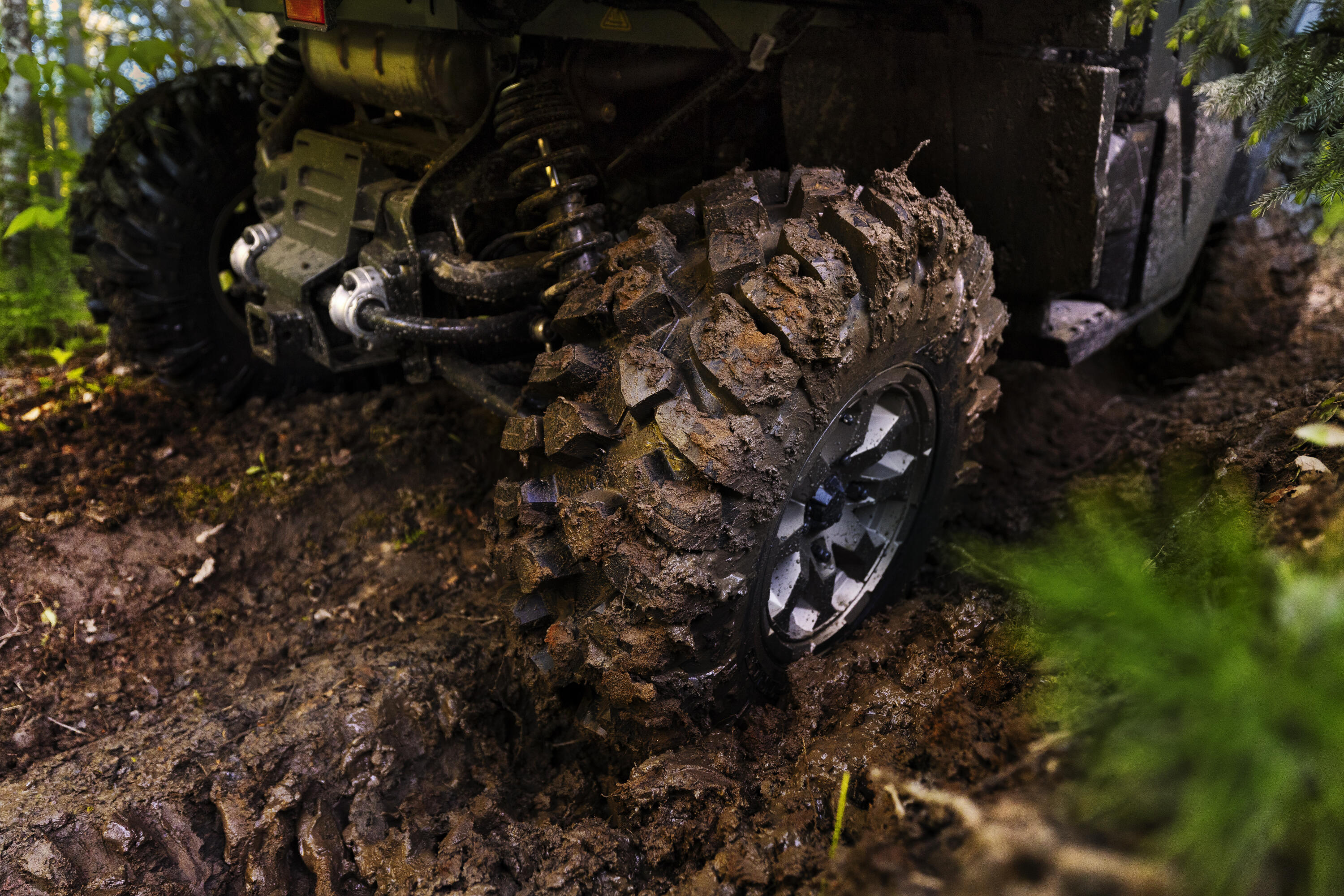

Suspension, Steering and Cabin Refinement
Can-Am redesigned the HD11 around control and comfort, with updated suspension calibration, improved ergonomics and reduced noise and vibration. Dynamic Power Steering reduces effort in tight work areas and over rough ground. Package-specific shocks, tires and ground clearance affect the final ride, so a Limited cab and an XT should be evaluated as complete vehicles rather than assumed to feel identical because they share an engine.

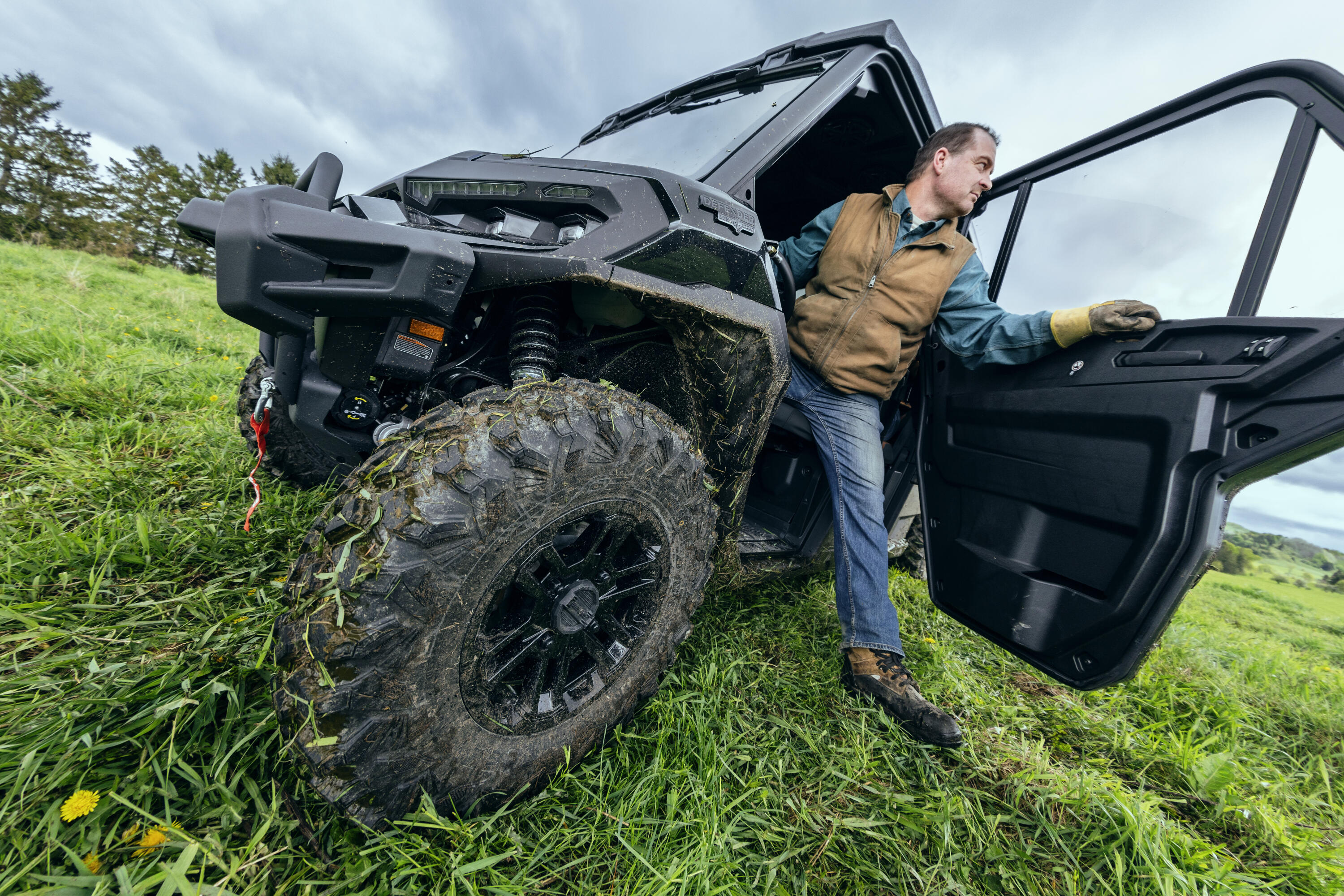

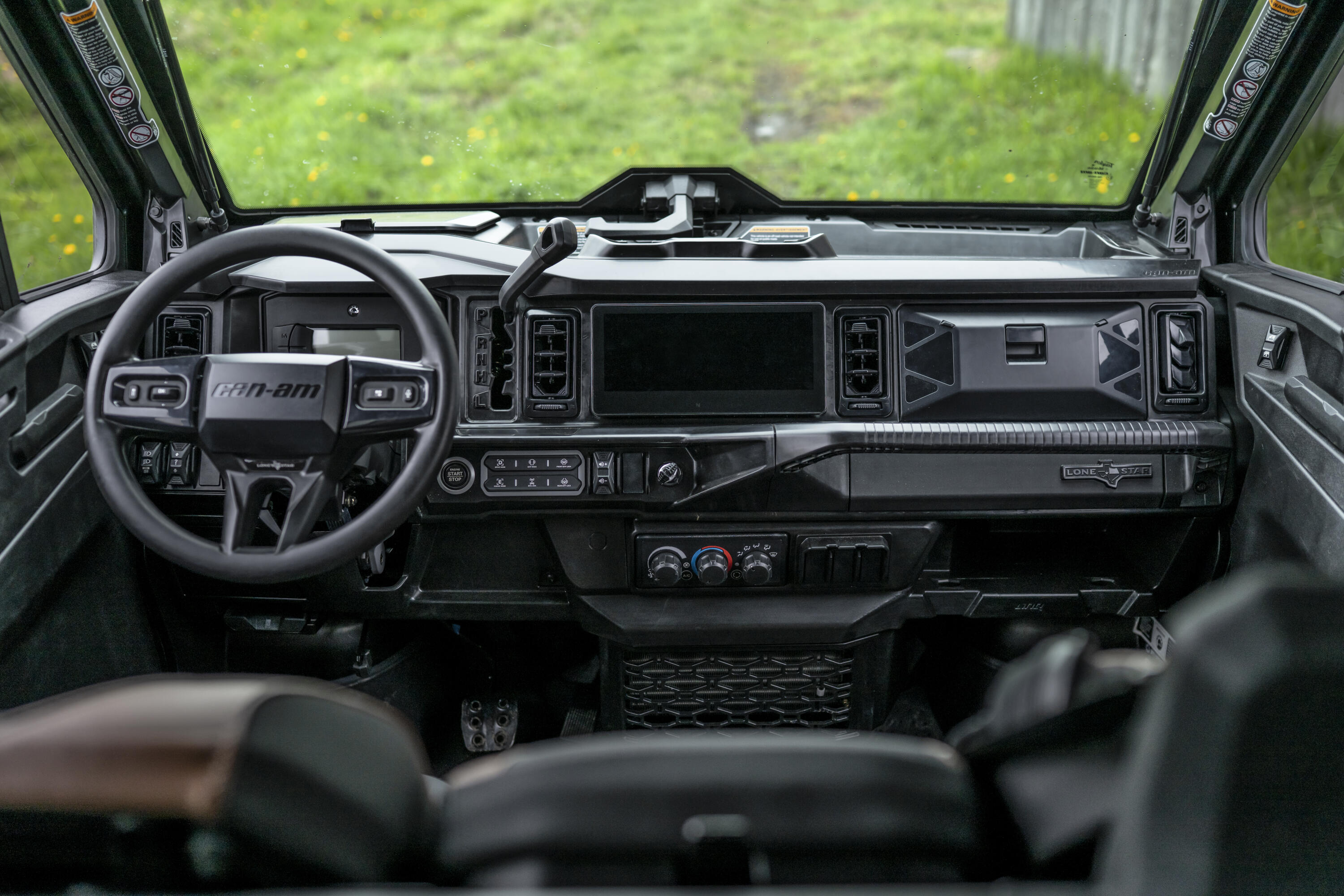

The interior is one of the HD11’s strongest reasons to upgrade. A quieter powertrain, more polished controls, improved storage and available infotainment make long days less tiring. This matters for ranchers, property managers and hunters who spend hours in the vehicle rather than using it for a short recreational loop. A comfortable operator is generally smoother with the throttle, more attentive to terrain and less fatigued at the end of the day.
Cargo, Towing and Everyday Work
The Defender’s tilting cargo box remains suited to feed, tools, fencing supplies, firewood, recovery equipment and hunting gear. Can-Am positions the HD11 around serious hauling and towing capability, but exact bed, payload, towing and tongue-weight ratings should always be confirmed for the selected configuration. Passengers, cab components, accessories and cargo all count toward the operating load.
Secure dense cargo low and forward, and prevent small equipment from moving around the bed. A cargo divider or fitted LinQ box can turn an open bed into a much more useful system. When towing, verify the trailer, hitch, coupler, safety equipment and terrain are appropriate. Rated capacity does not mean every maximum load is suitable for every grade, surface or weather condition.
Can-Am Defender HD11 Models and Packages
Defender HD11
The standard three-seat HD11 is the cleanest entry into the new platform. It suits buyers who want the 95-horsepower engine, redesigned transmission and updated cabin but prefer to choose their own roof, windshield, protection, winch and storage. It is a strong base for a purpose-built ranch, hunting or property machine.

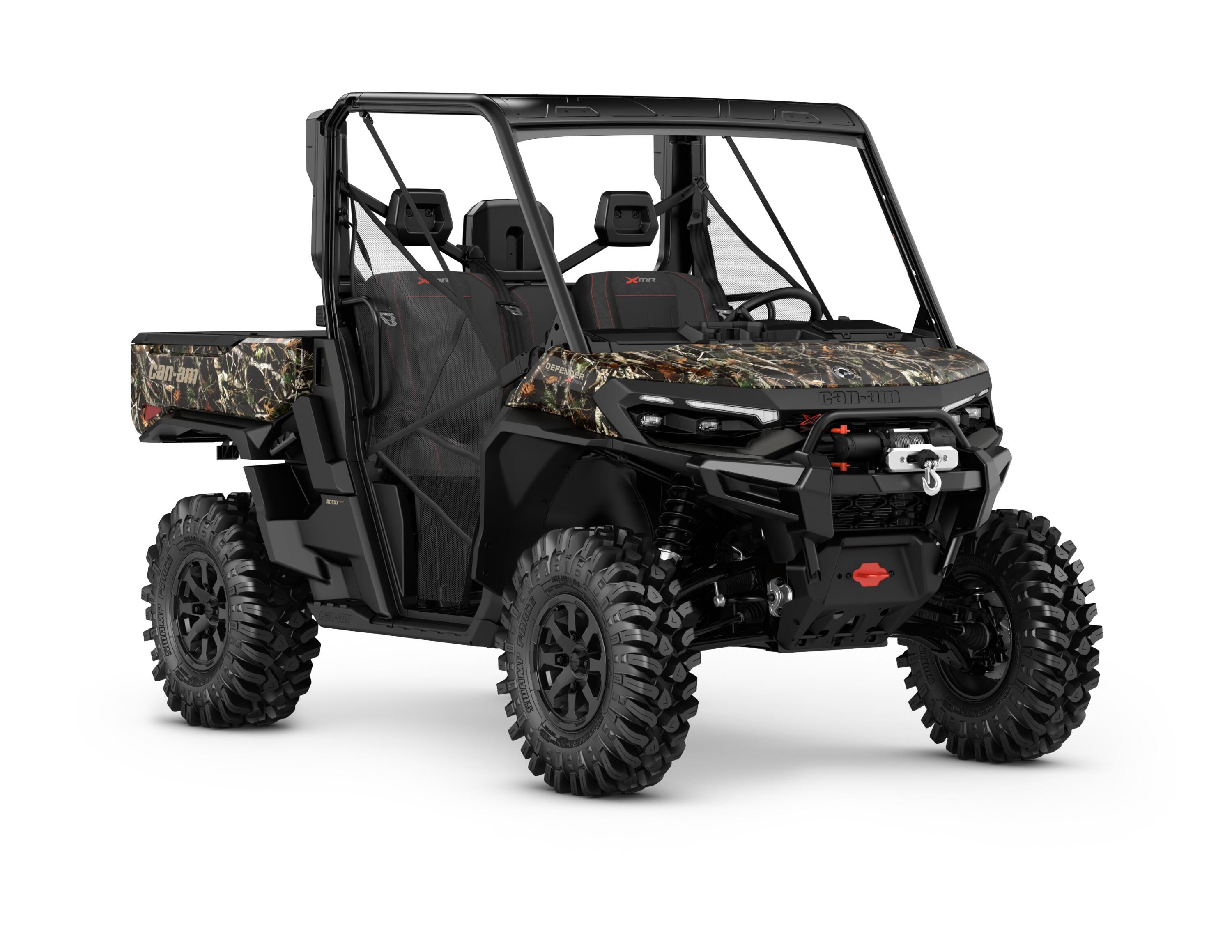

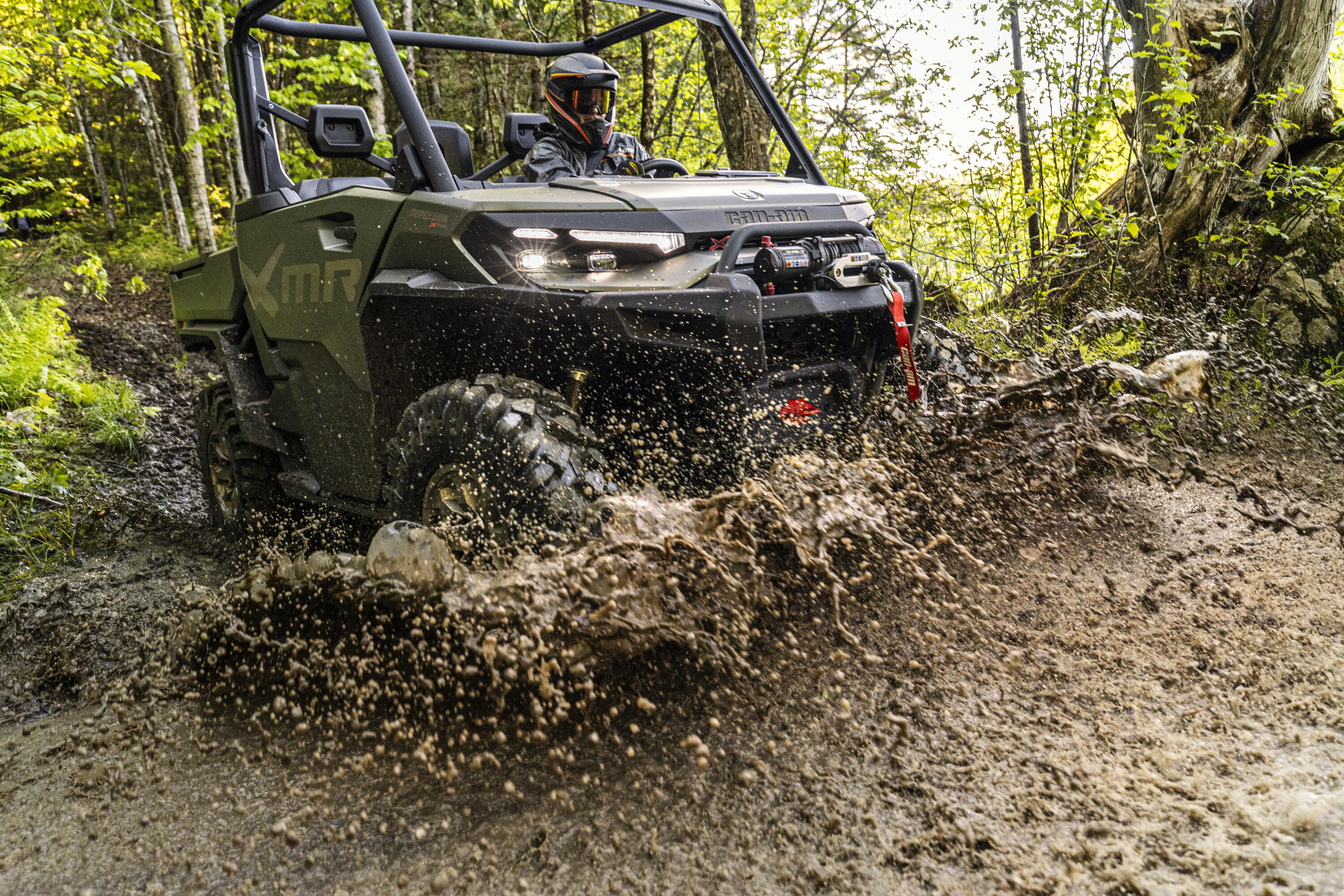

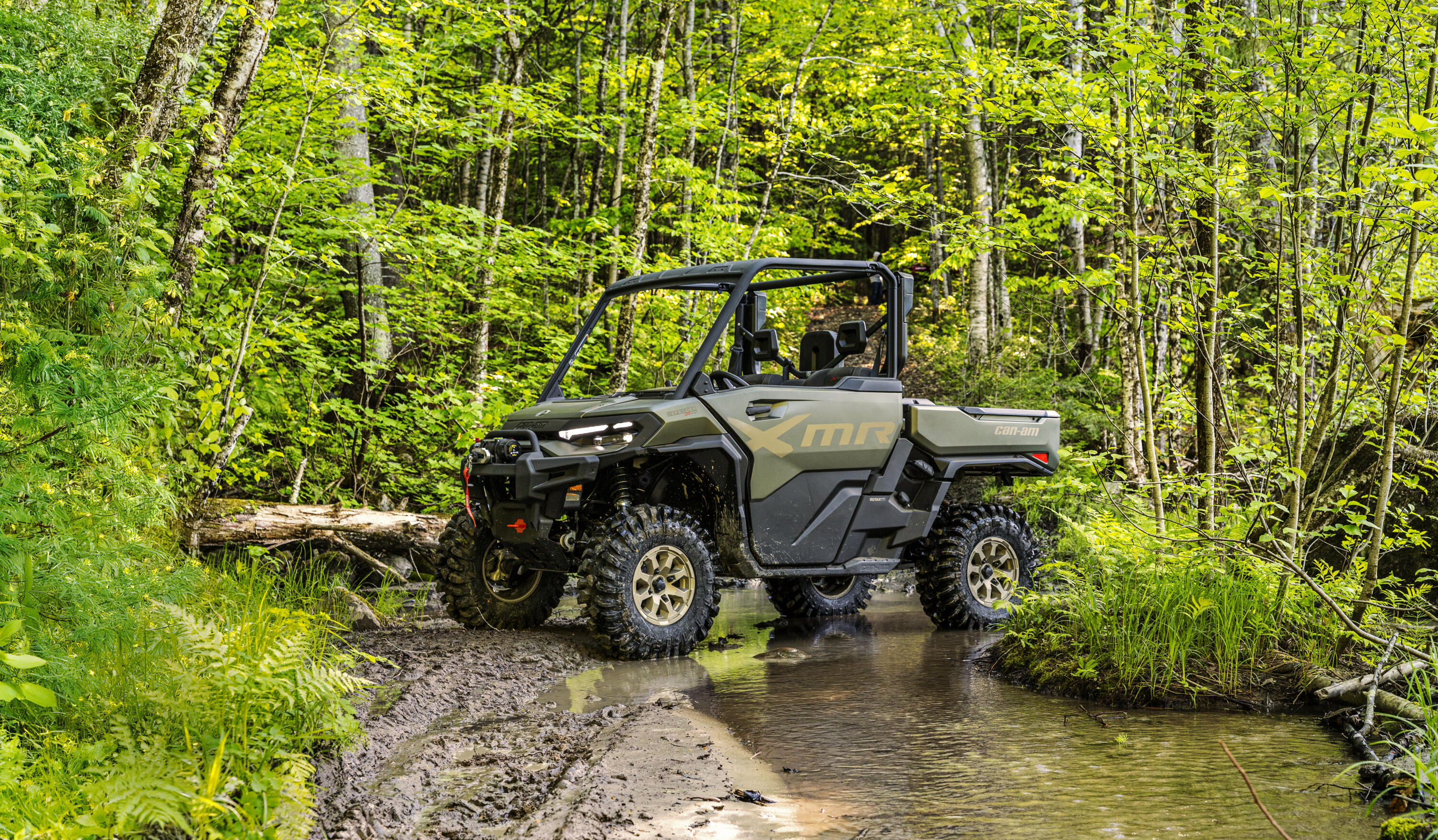

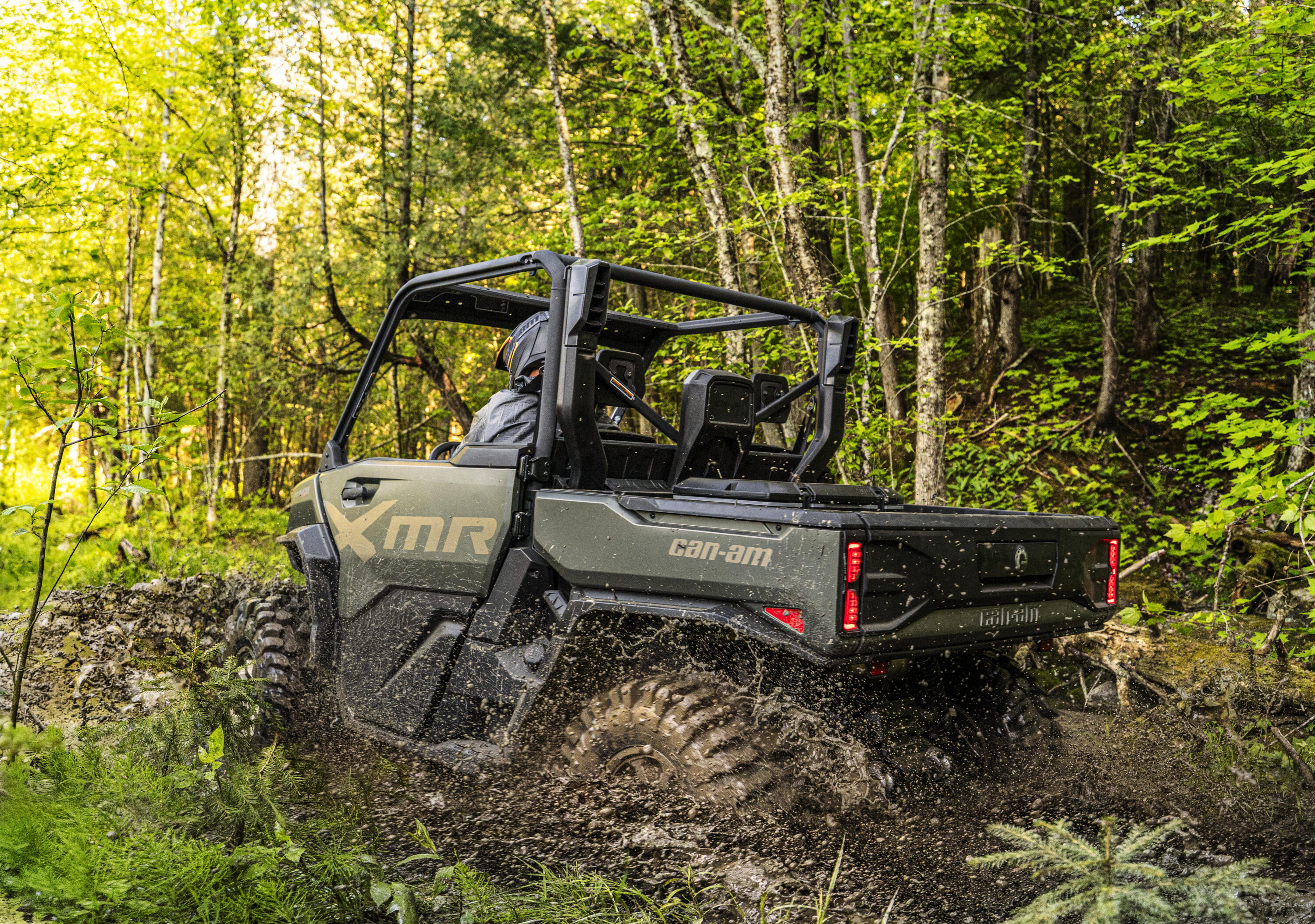

Defender XMR HD11
X mr is the purpose-built mud and extreme-terrain package. It typically adds features such as a factory snorkel system, Smart-Lok front differential, arched suspension components, increased ground clearance, heavy-duty protection, a winch, and aggressive mud tires. For Colorado buyers tackling deep mud, snow, rutted access roads, or demanding hunting terrain, the Defender HD11 X mr provides specialized capability straight from the factory.
Defender XT CAB HD11
XT CAB encloses the operator area for cold, dust and changing weather. It is aimed at owners who need more protection than a windshield and roof can provide but may not need every premium feature of a Limited. Confirm the exact windshield, windows, HVAC or heater equipment on the current unit because cab specifications and package content can change.

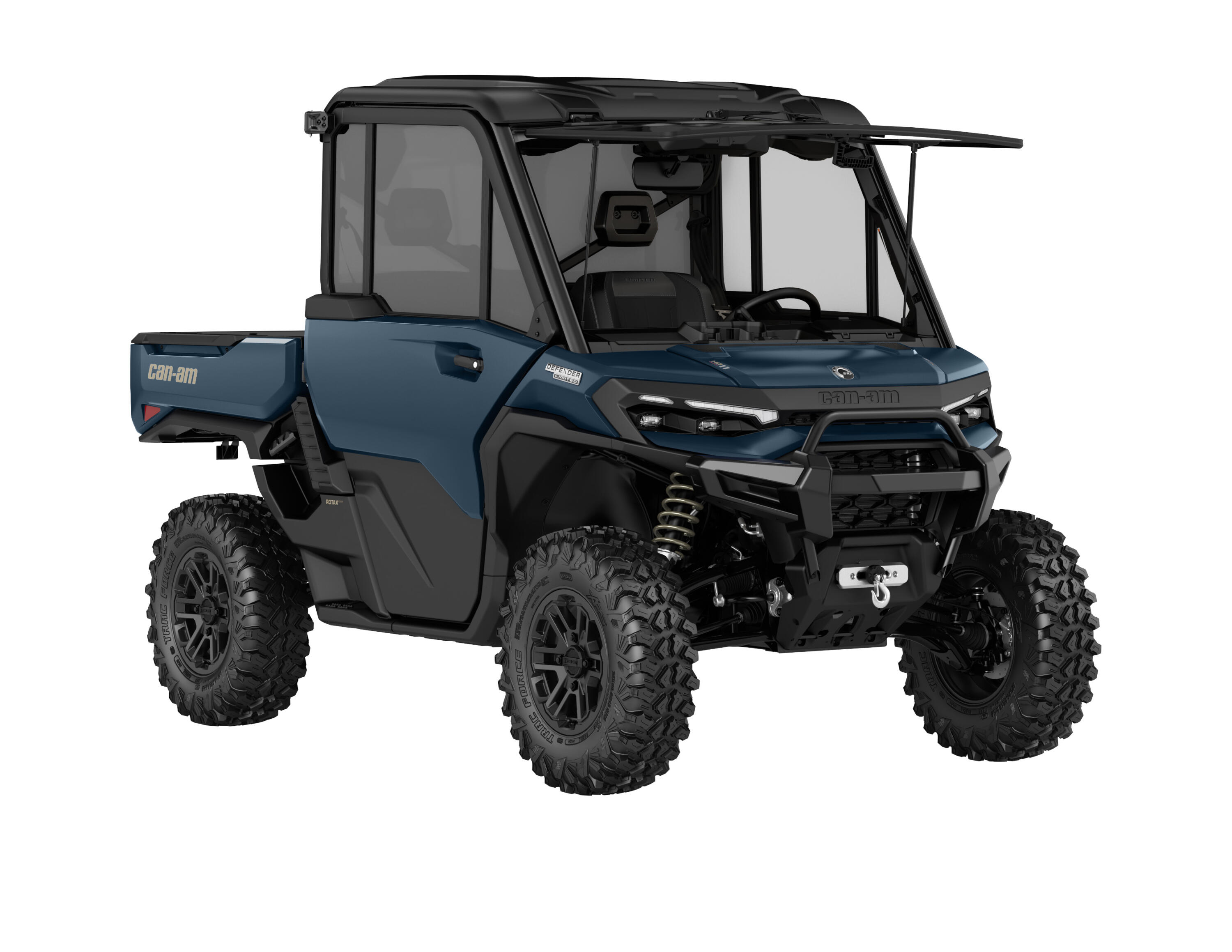

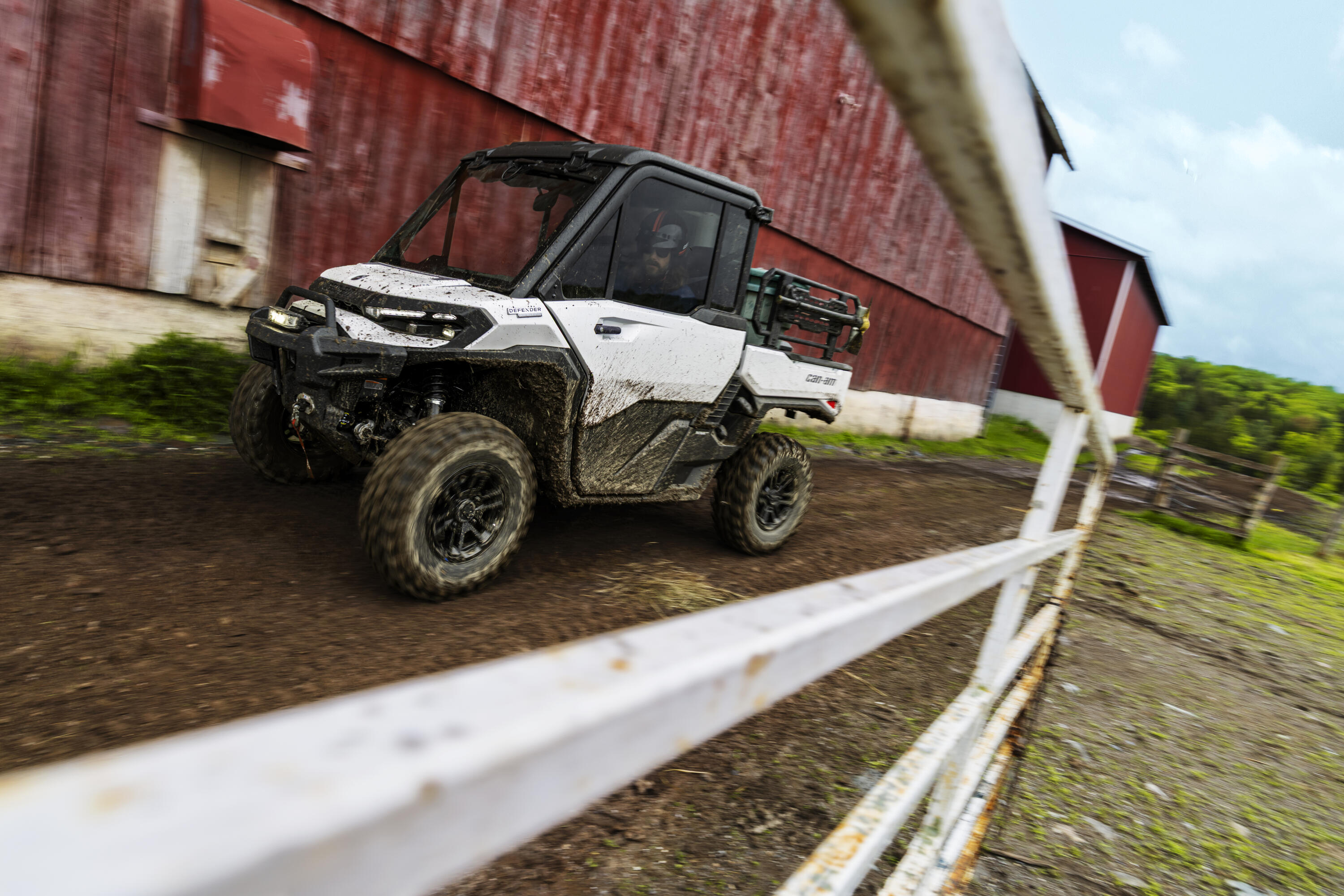

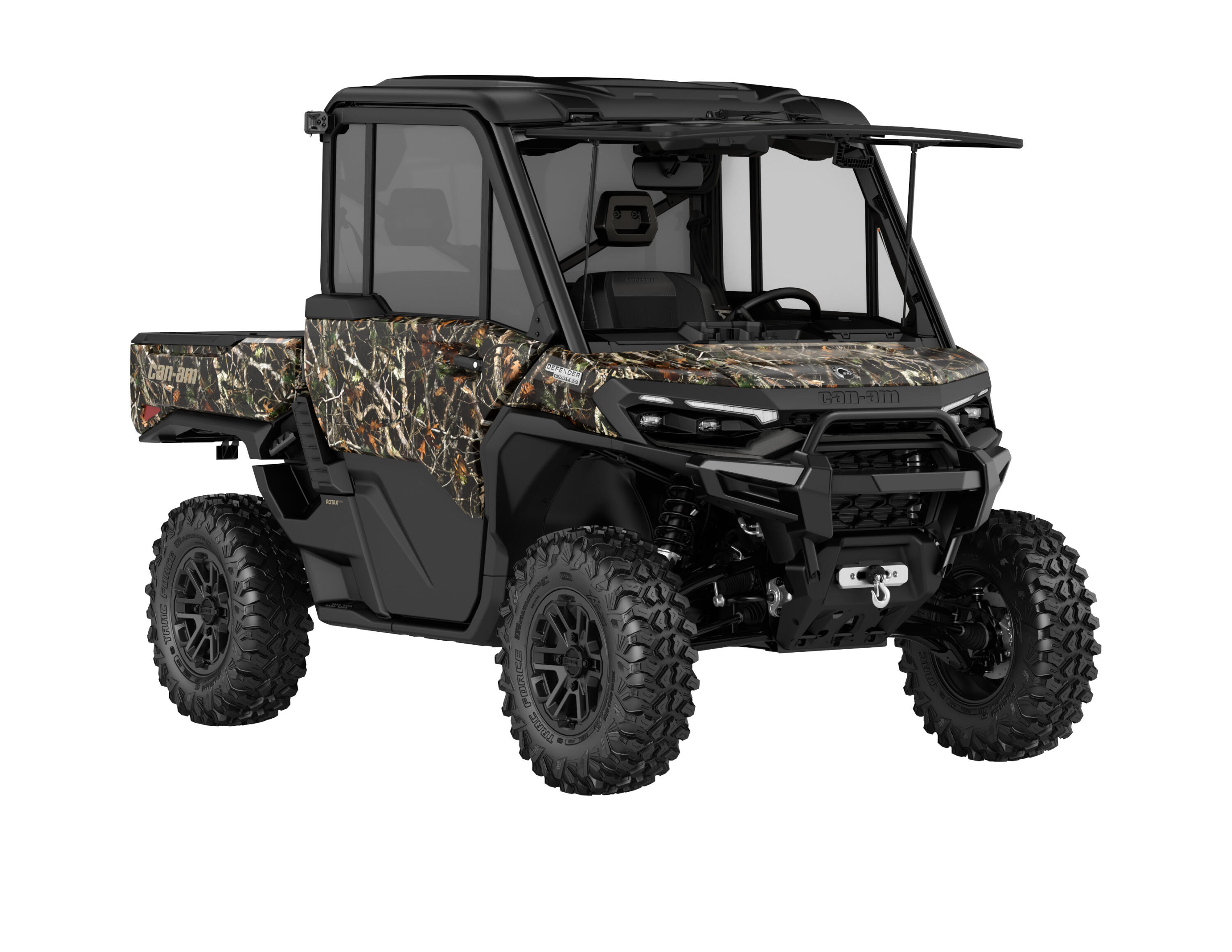

Defender Limited HD11
Limited is the premium all-weather configuration, combining the HD11 platform with a fully equipped cab and climate-control focus. It is designed for long workdays, winter use and buyers who value comfort, sealing and integrated equipment. The added cab weight and complexity are worthwhile when the vehicle genuinely works across seasons; an open XT can be the better value for mild-weather use.

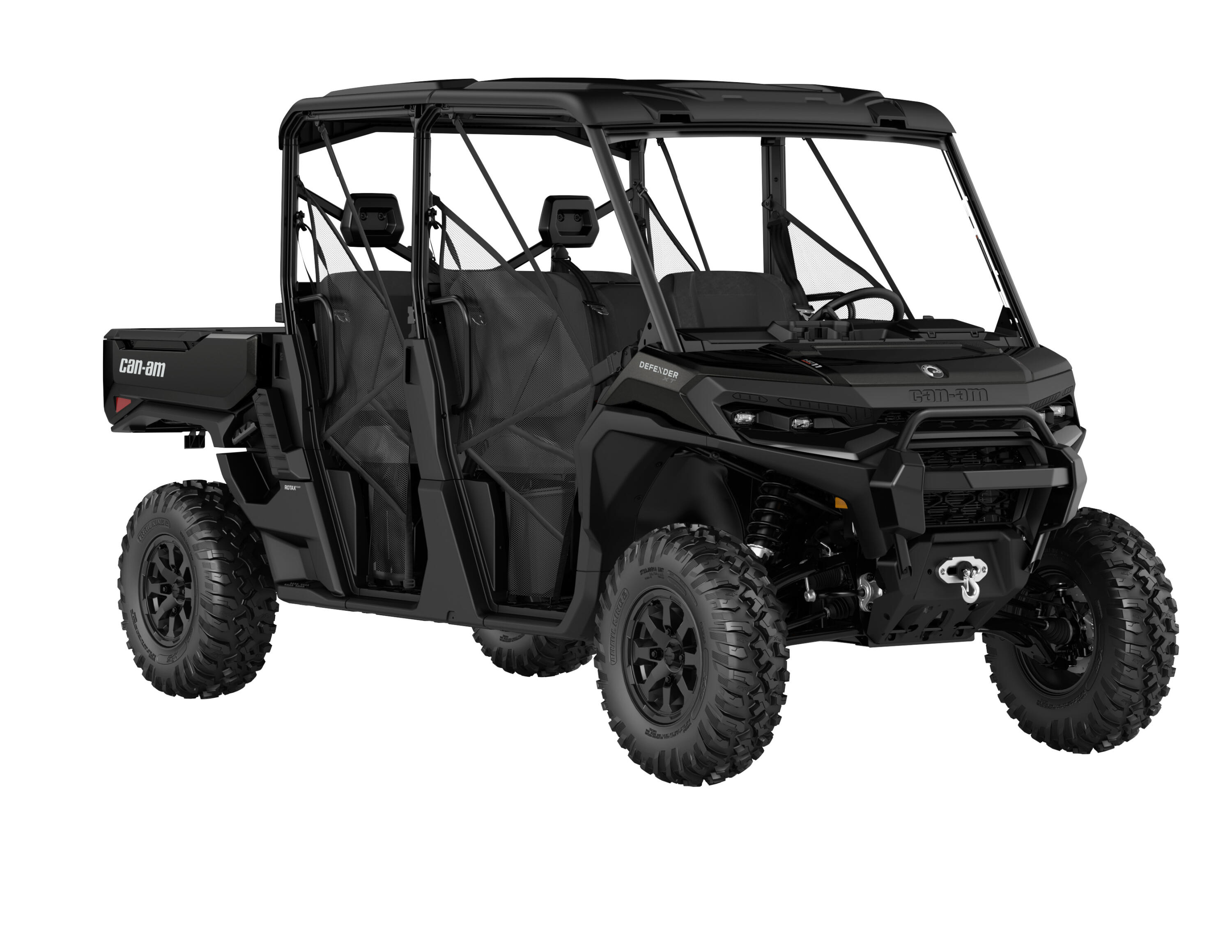

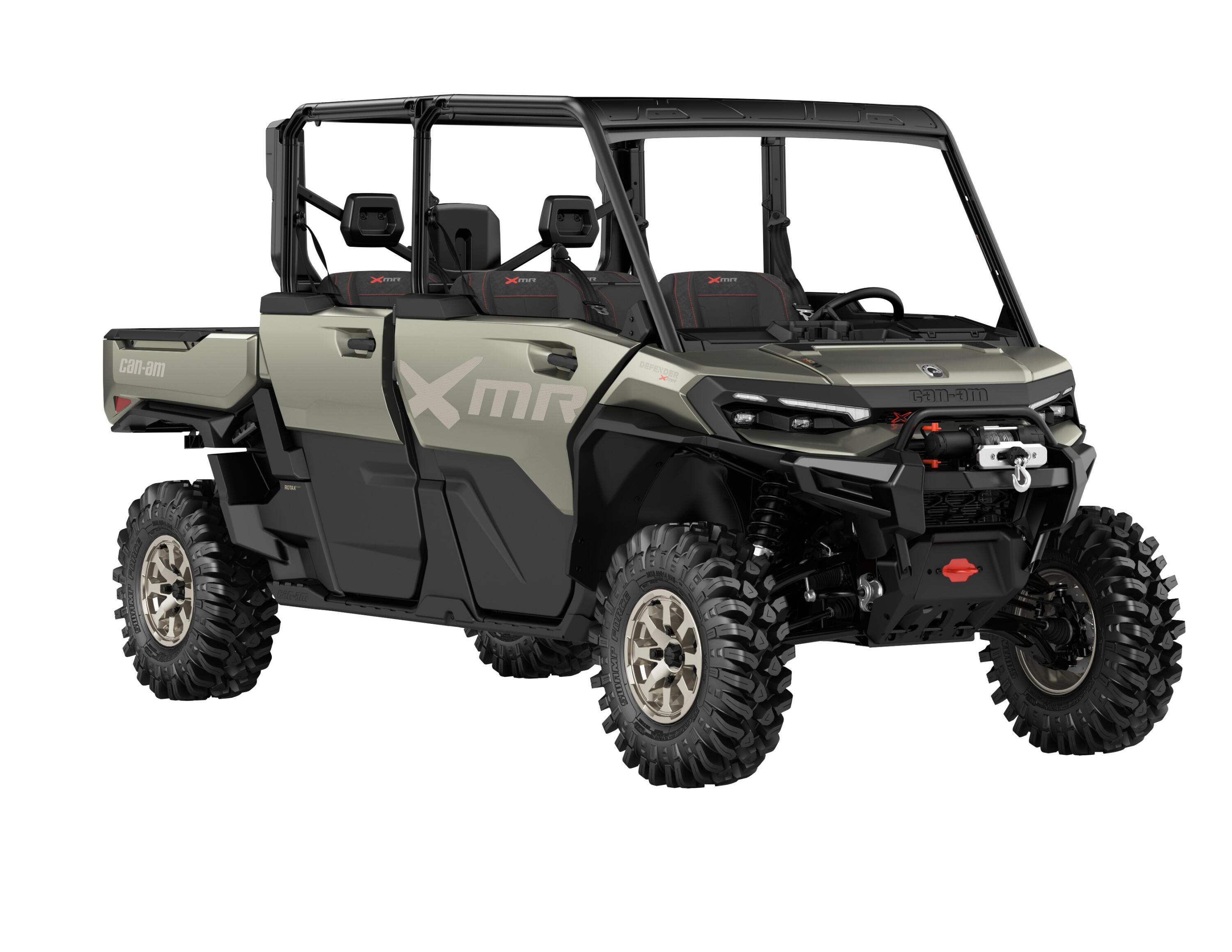

Defender MAX XT HD11
MAX adds a second bench and seating for up to six while retaining the cargo bed. The longer wheelbase benefits crew transport but requires more turning room, trailer length and storage space. For ranch teams, contractors, hunting groups and families who regularly use the rear seats, MAX makes more sense than repeatedly moving two machines.

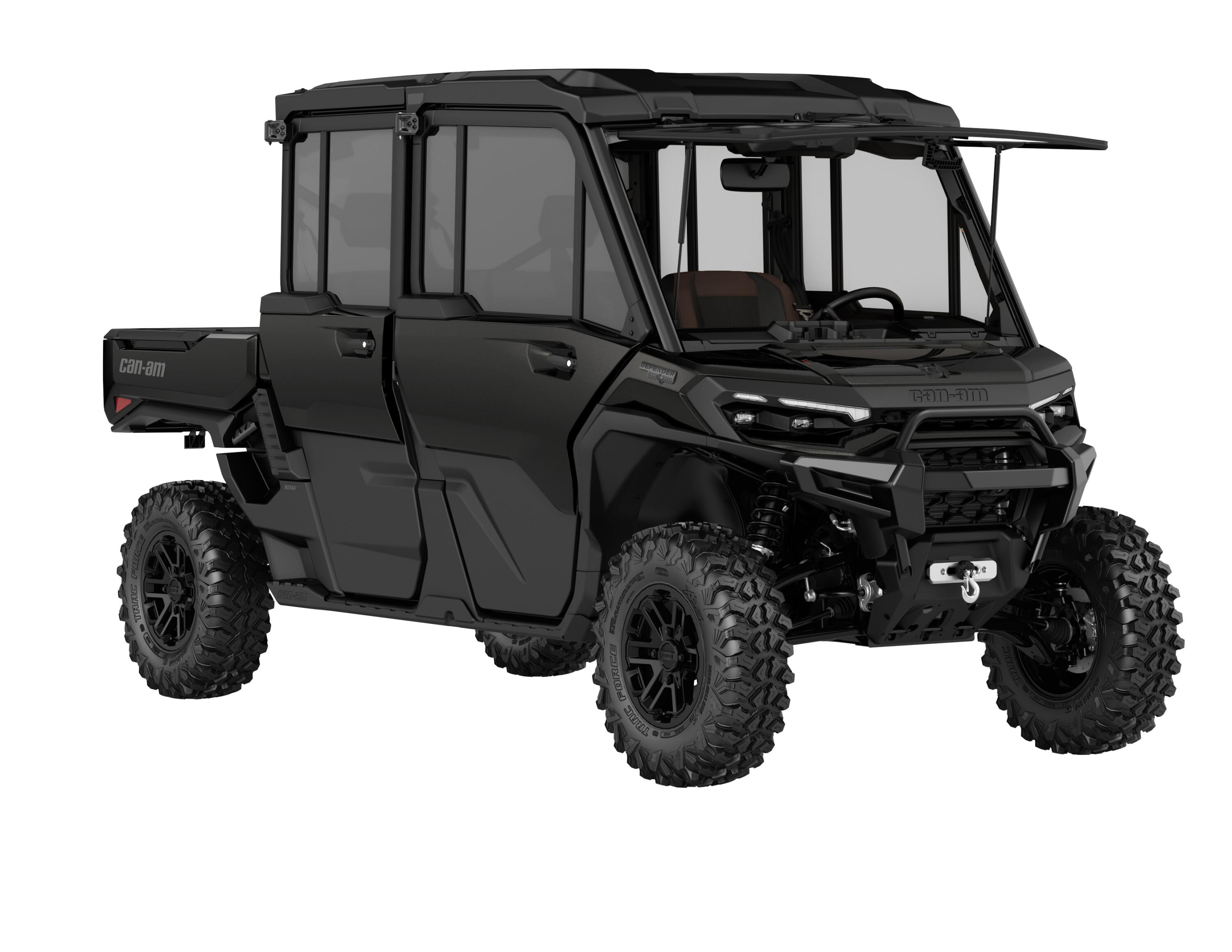

Defender MAX XT CAB and MAX Limited HD11
Cab-equipped MAX models combine six-seat capacity with weather protection. MAX XT CAB balances crew transport and practical equipment, while MAX Limited targets the most complete climate-controlled experience. These are substantial machines, so buyers should check transport width, overall length, garage clearance and loaded trailer capacity before purchase.

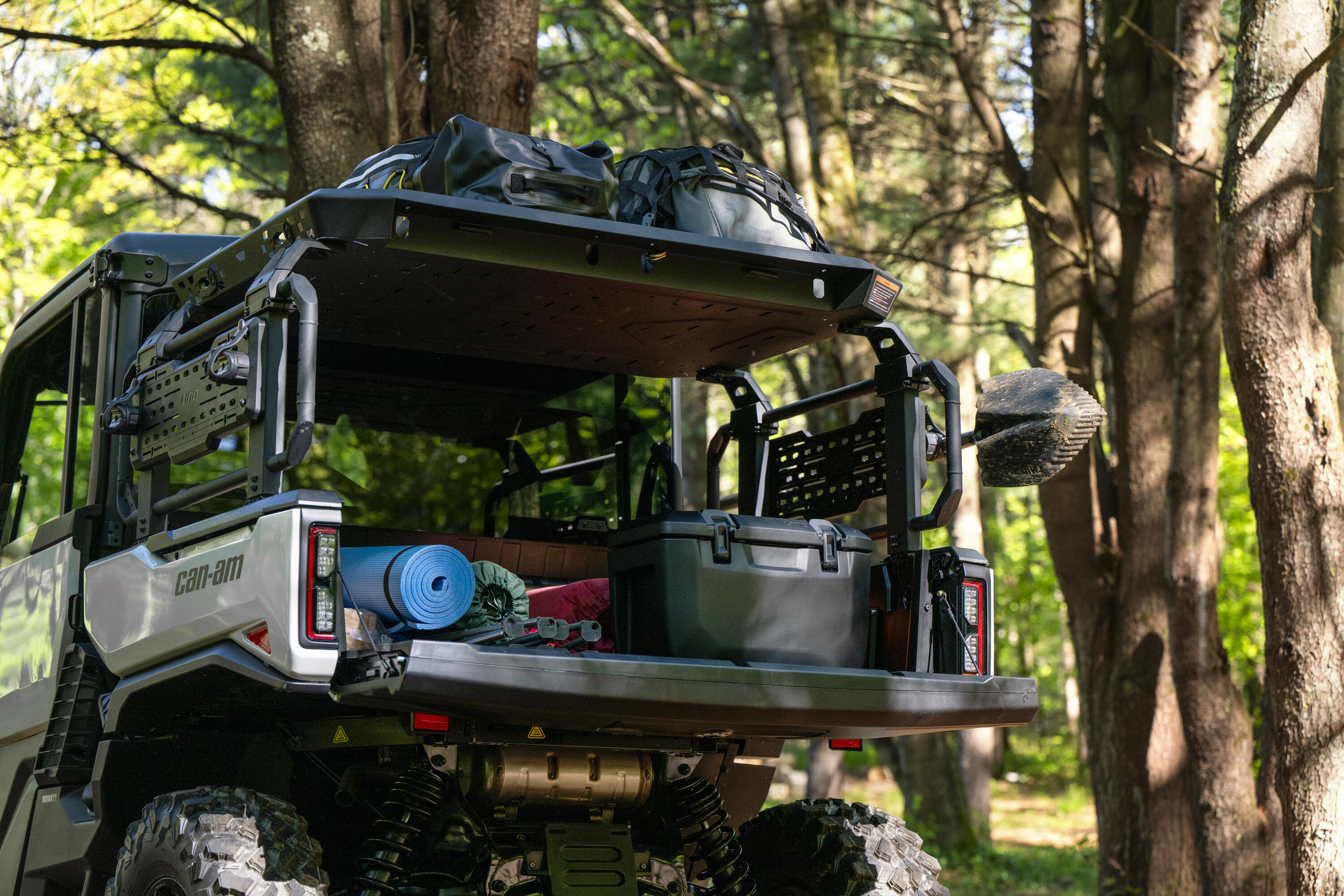

LinQ Accessories and Building an HD11

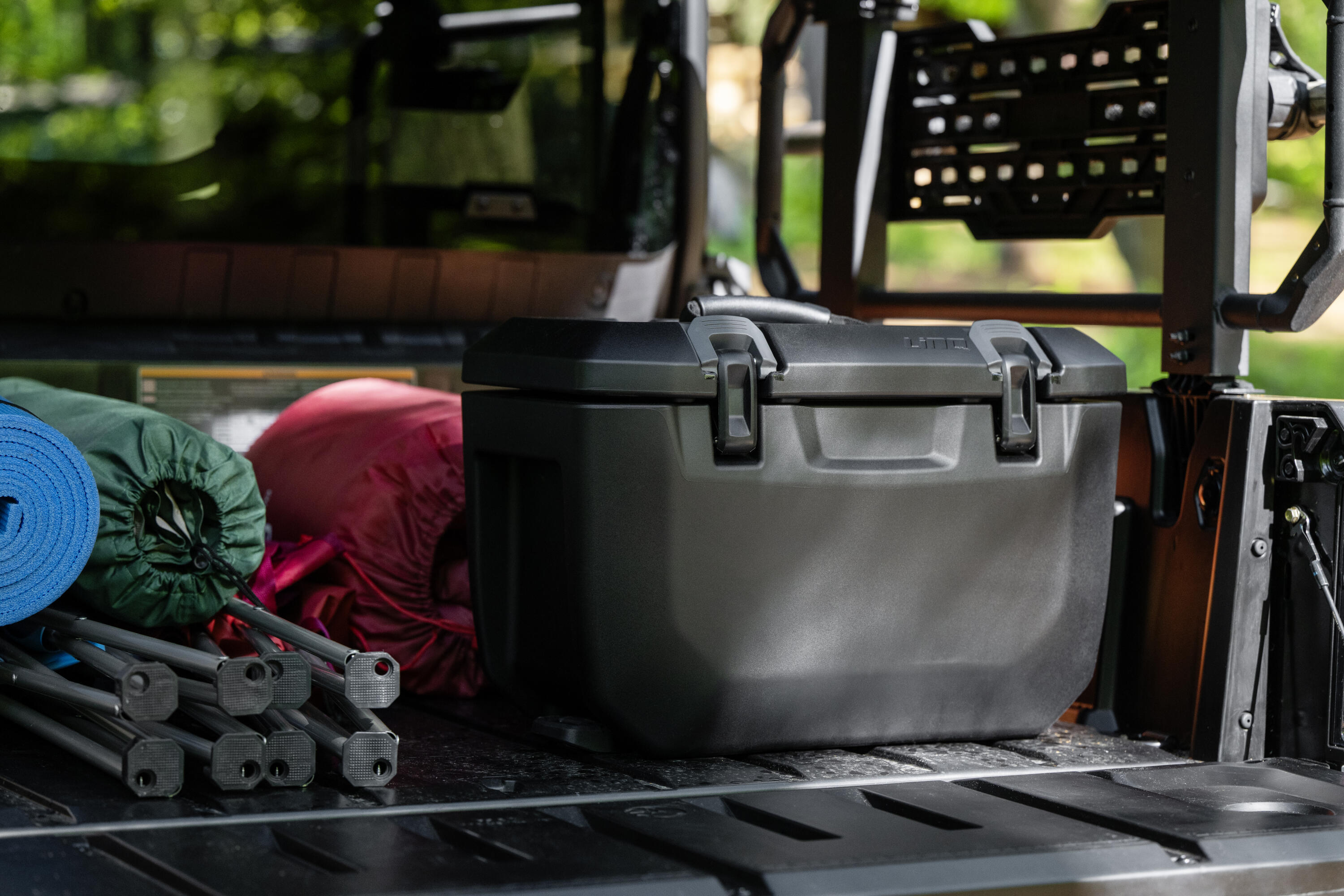

Can-Am’s LinQ system uses dedicated mounting points to secure compatible boxes, coolers, racks, bags and specialized holders without treating every trip as a new tie-down project. The system is especially valuable on a work UTV because the bed can change quickly between tools, ranch supplies, hunting gear and family use.
A Colorado ranch build might combine a roof or cab, mirrors, a winch, cargo divider and sealed LinQ tool storage. A hunting build may add weather-resistant boxes, auxiliary lighting and secure equipment holders. A winter build should coordinate the plow, mount, winch, defrosting, lighting, tires and electrical demand. Accessories should solve a repeated task rather than add weight and complexity without a clear purpose.
Fitment is specific. Verify the HD11 model, MAX or three-seat body, mounting position, bed space and accessory part number before ordering. Cab panels, racks, rear windows, audio equipment and cargo accessories can occupy the same physical space or change transport dimensions. Sun Powersports can help plan the complete setup before incompatible parts are installed.
HD11 vs. HD10: Which Defender Is Right for You?
Choose the HD10 when you want proven capability, broad specialized configurations and potentially a lower entry price. Its 82-horsepower V-twin remains capable for ranching, hunting, hauling and snow work. It is also the established path to specialized formats that may not be duplicated in the HD11 range.
Choose the HD11 when you value the new 95-horsepower inline-three, pDrive clutch, redesigned transmission, updated differential technology, quieter cabin and premium operating experience. The difference is most meaningful with an enclosed cab, MAX body, elevation or sustained daily use. Test the exact packages back to back; seating, noise, steering and shift feel often make the decision more clearly than a specification sheet.
How the Defender HD11 Compares

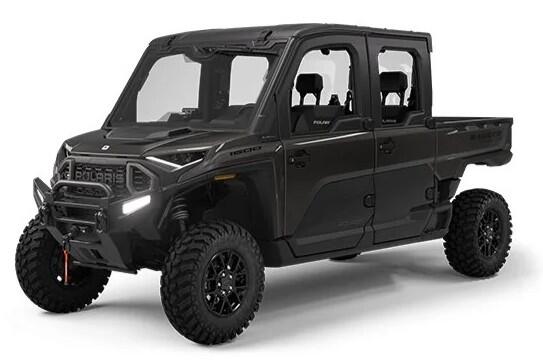

Polaris Ranger XD 1500
The Ranger XD 1500 is a natural premium-utility comparison, with strong power, a steel-belt transmission concept and substantial towing focus. The HD11 counters with a lighter-feeling Defender format, Can-Am’s pDrive CVT, Quick-4Lok or Smart-Lok choices, a refined cabin and the LinQ accessory ecosystem. Compare physical size, cab execution, service access and the equipment included at the actual purchase price.

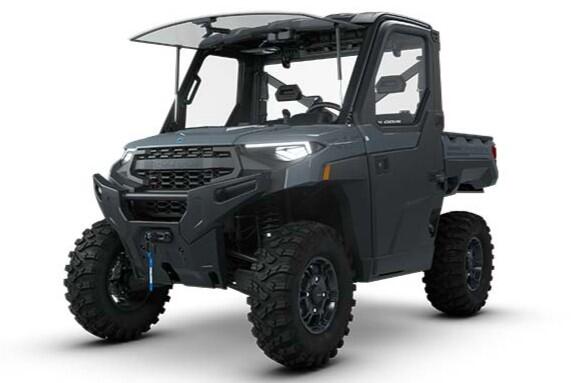

Polaris Ranger XP 1000
The Ranger XP 1000 is a mainstream utility benchmark with broad dealer and accessory support. The HD11 sits above it in power and next-generation refinement, while the Ranger may appeal to buyers prioritizing familiarity or a lower-cost package. Real-world cab noise, low-speed control and installed equipment deserve more weight than brand loyalty alone.

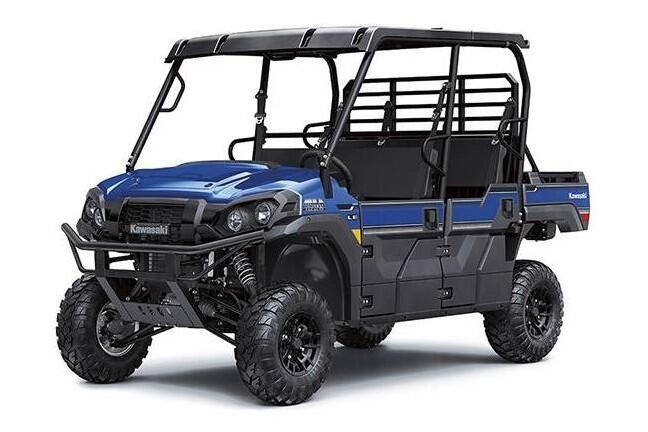

Kawasaki Mule PRO-FXT 1000
The Mule emphasizes durable utility and a convertible passenger-and-cargo layout. The Defender MAX keeps dedicated rear seating and a separate bed, while the HD11 provides substantially more power. The Mule layout is clever for owners who frequently alternate capacity; the MAX is straightforward when six seats and cargo space are needed at the same time.

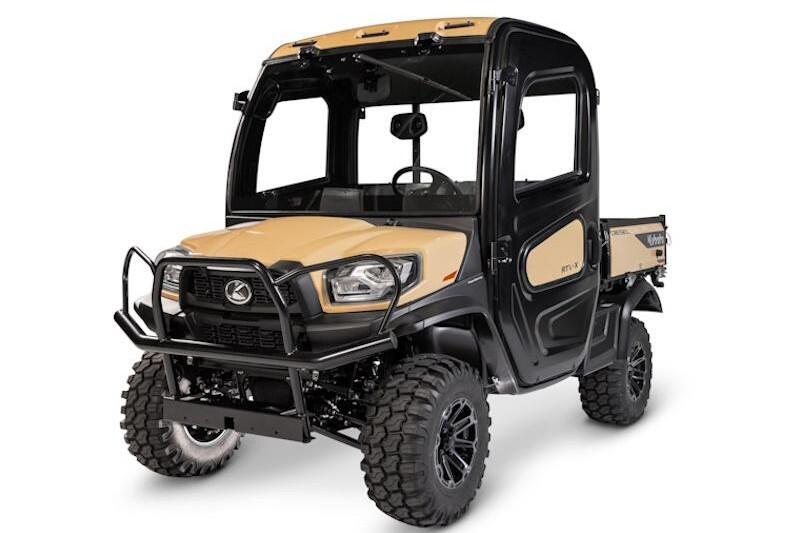

Kubota RTV-X
Kubota diesel RTV models favor equipment-style operation, hydrostatic control and low-speed work. The HD11 is more responsive and versatile for owners combining ranch work, mountain access, hunting and recreational travel. The better choice depends on whether the vehicle behaves more like mobile equipment or a mixed-use off-road vehicle.
Ownership and Maintenance
The HD11 was designed with lower maintenance demands and improved service access in mind, but it still needs disciplined care. Follow the current operator’s guide for engine oil, filters, drivetrain fluids, cooling-system inspection, brake checks and service intervals. Dust, mud, towing and snowplowing are severe-use conditions and justify more frequent inspection.
Keep radiator and CVT intake areas clear, inspect tires and wheel fasteners, wash away packed mud and road treatment, and use the correct transmission range. Record accessory electrical loads and keep wiring protected from heat, abrasion and water. Because the HD11 is a distinct platform, do not assume an HD10 part, fluid procedure or accessory automatically transfers to it.
